제품 상세 정보:
|
| 와이어 직경: | 0.7-3.0MM | 속도: | 2400 PC / Ｈ (length=100mm, 머리를 / 꼬리 부분 stripping=50mm으로 잘라줍니다) |
|---|---|---|---|
| 절단 길이: | 0.01MM-10M | 절단 포용력: | (0.1-0.2)mm*L (L=Cutting 길이) |
| 공구 물자: | 수입된 텅스텐 강철 블레이드 | 차원: | 340x387x230mm(L*M*H) |
| 하이 라이트: | 360 급 전선 처리 Machine,360degree 스크랩 케이블 stripper,3 원형 날은 케이블 스트립퍼를 폐기합니다 |
||

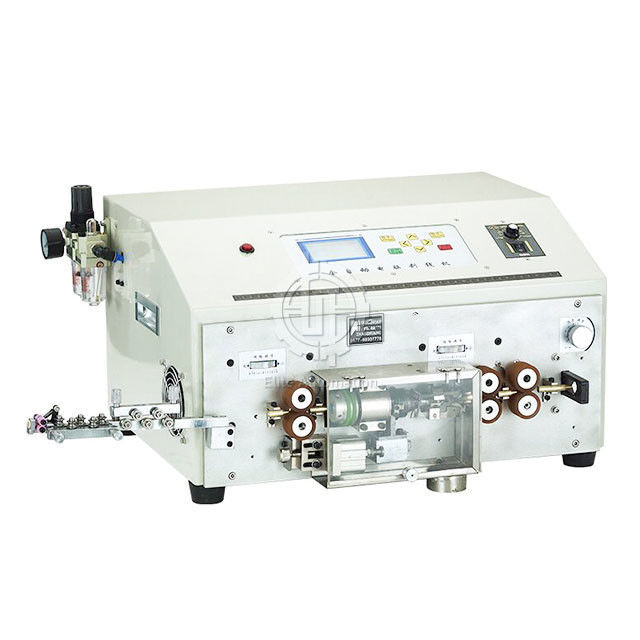

Fully Automatic Enamel Wire Cutting and Stripping Machine Three circular blades scrape paint in a 360-degree Position
This enamel wire cutting and stripping machine can handle wires with a diameter of 0.7-3.0 mm.
It can also be used solely as a cutting unit, with a maximum wire cutting diameter of 2.5mm.
Three circular blades scrape paint in a 360-degree position, extending the blade's repeat life. Tungsten steel is long-lasting and can be ground and re-used.
Scraping speed: For 1.0mm enameled wire, the fastest speed is 25pcs/min. 1500pcs/h, and the slowest speed is 14pcs/min. 840pcs/h; for 1.2mm enameled wire, the fastest speed is 26pcs/min. 1560pcs/h, and the slowest speed is 15pcs/min. 900pcs/h.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Wire diameter | 0.7-3.0mm |
| Speed | 2400pcs/h (Cutting length=100mm, head/tail stripping=50mm) |
| Cutting Length | 0.01MM-10M |
| Cutting tolerance | (0.1-0.2)mm*L (L=Cutting length) |
| Speed adjustment | 1-6 |
| Tool material | imported tungsten steel blade |
| Power supply | AC220V/50HZ |
| Rated Power | 100W |
| Max. Power | 200W |
| Dimensions | 340x387x230mm(L*M*H) |
| Weight | 21KG |
